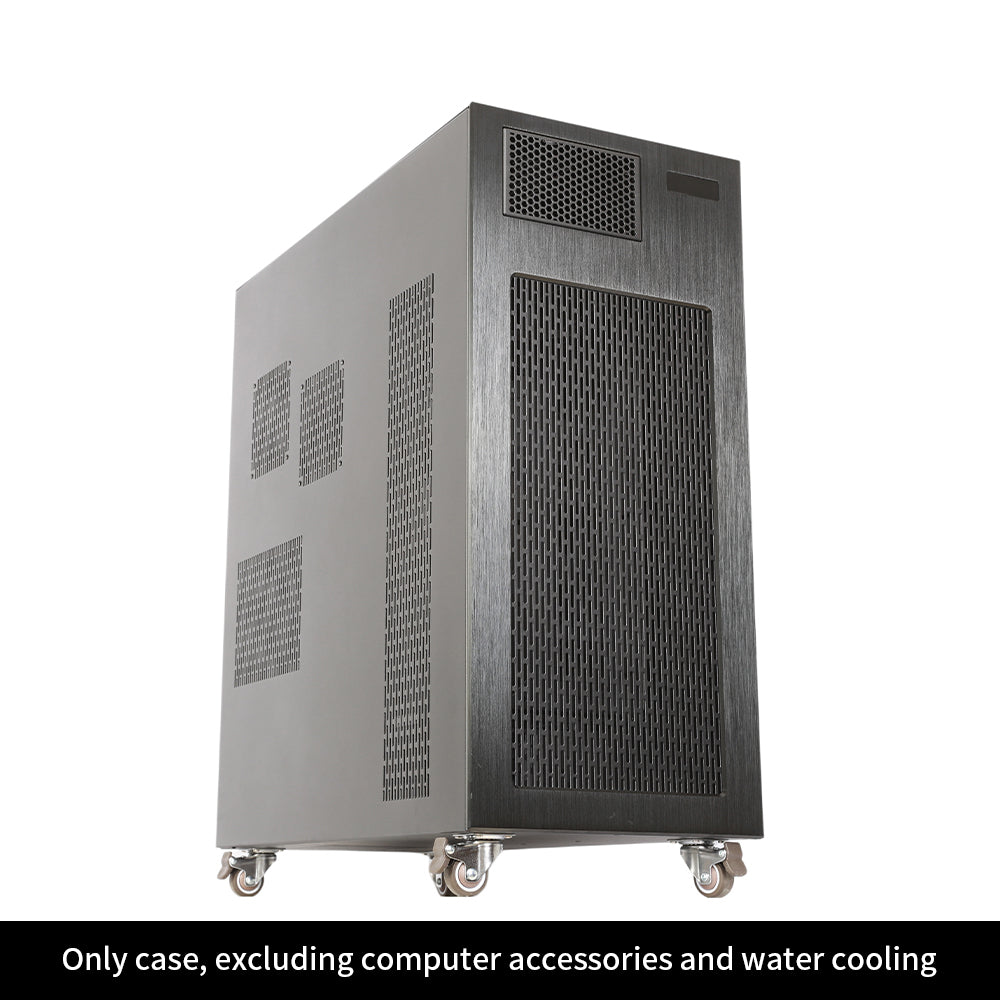

Astralcooler Professional Tower Server Case

4mm metal modular server case

$599.00
Server case: ATX/HTPX, dual PSU, 11 PCIe slots, for multi-GPU. 960mm rad support, 8 hot-swap bays, 4mm metal. 25°C cooler.
ATX / HTPX motherboardsDual ATX power supply11 PCIe slotsMulti-GPU parallel8 hot-swap HDD/SSD
Astralcooler Professional Tower Server Case
Astralcooler Professional Tower Server Case
Astralcooler Professional Tower Server Case
Astralcooler Professional Tower Server Case
Astralcooler Professional Tower Server Case
Astralcooler Professional Tower Server Case
Astralcooler Professional Tower Server Case
Astralcooler Professional Tower Server Case
Item Specification
Case Type Full-Tower Water-Cooled Server Chassis
Material External aluminum alloy, aluminum front panel
Supported Motherboards HTPX / E-ATX / ATX / MICRO-ATX / MINI ITX
Supported Power Supplies ATX (Customizable PSU mounting kit, compatible with multiple power supply form factors)
Max CPU Air Cooler Height 170mm
Max VGA Card Length Unlimited
I/O Panel USB3.0 x 2 + USB2.0 x 2 + Type-C Gen2 + Combo Audio + MIC / Fan Controller / Card Reader / Fan LED Switch / HDD Hot-swap Docking
Air Cooling System Top: 4 x 120mm (Standard)
Front: 2 x 480mm (Standard)
Bottom: None
Rear: 1 x 120mm (Standard)
Water Cooling System Top: 360/480mm (Optional)
Rear: 120mm (Optional)
PCI-E Expansion Slots 11
Drive Bays 5 x 5.25" tool-less drive bay
8 x 3.5" tool-less HDD or 8 x 2.5" SSD
Case Dimensions 600 (D) × 300 (W) × 650 (H) mm





Features

  • Excellent Compatibility & Powerful Expansion
    • Fully compatible with full-size mainstream motherboards and HTPX server motherboards.
    • Dual ATX power bays support dual power supply for higher operational reliability.
    • Equipped with 11 PCIe slots, perfectly compatible with RTX 40/50 series graphics cards and high-speed network cards, ideal for multi-GPU parallel operation.
    • Storage expansion: Supports 8 hot-swap 3.5"/2.5" hard drives plus 5 additional SSDs, meeting large-capacity data storage demands.
  • Professional Water-Cooling & Efficient Heat Dissipation
    • Versatile radiator mounting: Top fits 360mm/480mm radiators (max 60mm thickness); Front supports dual 480mm or single 960mm radiators (max 100mm thickness); Rear reserved for 120mm cooling fans.
    • Front-in & rear-out three-dimensional air duct plus honeycomb vents increases air intake by 40%. Optimized airflow cuts CPU and GPU temperatures by up to 25°C.
    • Independent ventilation holes on the side target heat dissipation for CPU, memory and GPUs, keeping the whole system running cool under long-term heavy loads.
  • Sturdy Structure & Modular Design
    • Adopts 4mm brushed metal panel (anti-fingerprint & scratch-resistant). The frame withstands up to 100kg pressure, with excellent deformation resistance and electromagnetic shielding performance.
    • Modular design with detachable optical drive & water tank position, independent removable power and hard drive bays, greatly simplifying hardware replacement and routine maintenance.
    • Built-in silent casters for easy movement and on-site deployment.
  • Rich Front I/O & Customization
    • Top I/O Ports: 2 × USB 3.2 Gen2 (10Gbps), 1 × Type-C port (15Gbps), audio jacks for fast data transmission and convenient daily use.
