Radiator Intake or Exhaust Planning Airflow for a Liquid Cooled Tower Server

A liquid loop moves heat away from the CPU and GPU. It does not make that heat disappear. The radiator still has to transfer it into the room, and the direction of that airflow changes what the rest of the chassis sees.

An intake radiator pulls room air through the fins and into the case. This can give the radiator the coolest available air, which is useful when coolant temperature is the first priority. The tradeoff is that the warmed air then enters the chassis. Memory, storage, motherboard components and any air-cooled card need a separate path to receive fresh air.

An exhaust radiator sends warmed radiator air out of the case. This keeps the internal environment cleaner from a thermal point of view, but the radiator may be working with air that has already picked up heat inside the chassis. Neither choice is automatically right. The correct layout depends on where the radiator sits, which components remain air cooled, and how much unrestricted intake area is available.

Before choosing fan direction, sketch the physical path rather than only looking at fan arrows. Mark every radiator, every fan bank, the main intake openings, the exhaust openings and the components that still rely on air. A front radiator that feeds directly into a stack of GPUs needs a different plan from a top radiator that can exhaust naturally upward. Avoid placing a manifold, cable bundle or solid panel where it blocks a large part of the radiator face.

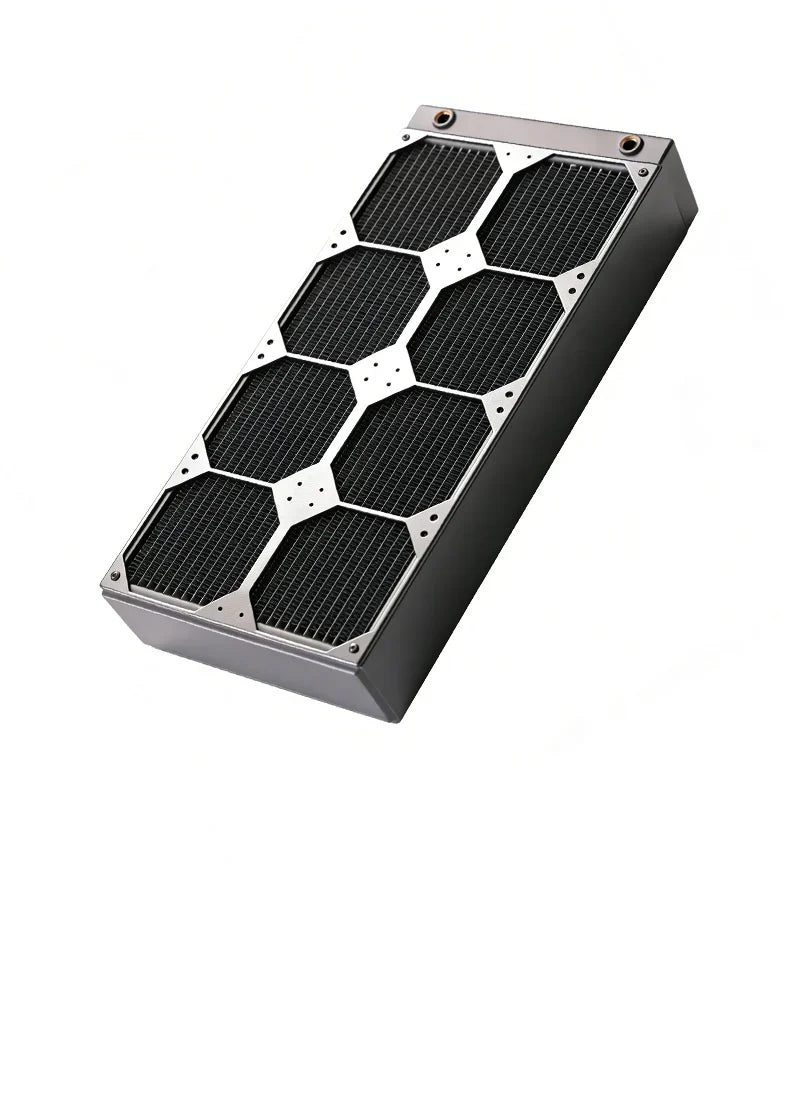

The Astral Cooler Oxygen-Free Copper Radiator 480mm with Frame has a large physical footprint. Its product dimensions are 518 x 254 x 100 mm before the builder adds fan depth, fittings and tubing bend room. That makes airflow planning inseparable from fitment planning. Check the fan side, the port side and the space required to service the loop after installation.

After the system is assembled, validate the choice under the workload you actually run. Record room temperature, coolant temperature if available, component temperatures, fan speed and the temperature of the air leaving the chassis. If a radiator layout lowers GPU temperature while causing memory or VRM temperature to climb, the loop is not yet balanced. A quiet, stable workstation comes from a complete airflow path, not from a single fan orientation rule.

Frequently Asked Questions / Q&A

Q: Does an intake radiator always produce the best result?

A: Not always. It can feed the radiator cooler room air, but it may also warm the air used by other components inside the chassis.

Q: Can radiator fans replace all case airflow?

A: No. Components that remain air cooled still need a clear supply of air and a route for warm air to leave the case.

Q: How should I validate fan direction?

A: Observe the completed system under its normal workload and record the ambient condition, component temperatures, fan speed and the airflow path.
