Quick Disconnect and Drain Planning for a Multi GPU AI Workstation
A multi-GPU AI workstation is rarely finished forever. A card may be replaced, a radiator may move outside the chassis, or a loop may need routine service. Recent community discussions about dual RTX PRO 6000 systems show that builders value a quieter loop, but they also worry about how to remove a GPU or drain the system without rebuilding everything.
Quick disconnects can make a planned service boundary easier to manage. They are not a reason to place a connector at every joint. Each additional component adds cost, physical length and flow resistance, so use them where they solve a real maintenance problem: for example, at a chassis exit to an external cooling section, at a removable GPU branch, or beside a component that is expected to change.
Decide the drain strategy at the same time. A drain point should be placed at a practical low point in the completed loop and remain reachable with the system assembled. A drain valve, compatible fitting arrangement and a controlled collection method need to be considered as one procedure. A quick disconnect is not automatically a drain solution, and even a drip-minimizing disconnect can release a small amount of coolant when it is separated.
For soft tubing, confirm every interface rather than treating G1/4 as an answer to every compatibility question. Thread form is only one part of the connection. The selected tube inner and outer diameters, fitting type, clamp or compression method, component orientation and available bend space must also be compatible. The AstralCooler 10 mm ID, 17 mm OD EPDM tubing is a useful reference for planning a soft-tube route, but the final assembly must match the specifications of every fitting and component used.
Keep the service plan visible. Mark which tubes can be disconnected, where the loop can be filled, where liquid will be collected and which components must remain powered off during servicing. If a GPU needs to come out, the plan should not rely on pulling a tube sideways or holding a reservoir at an unsafe angle. A little extra tube length at a deliberate service boundary is often more valuable than the shortest possible route.

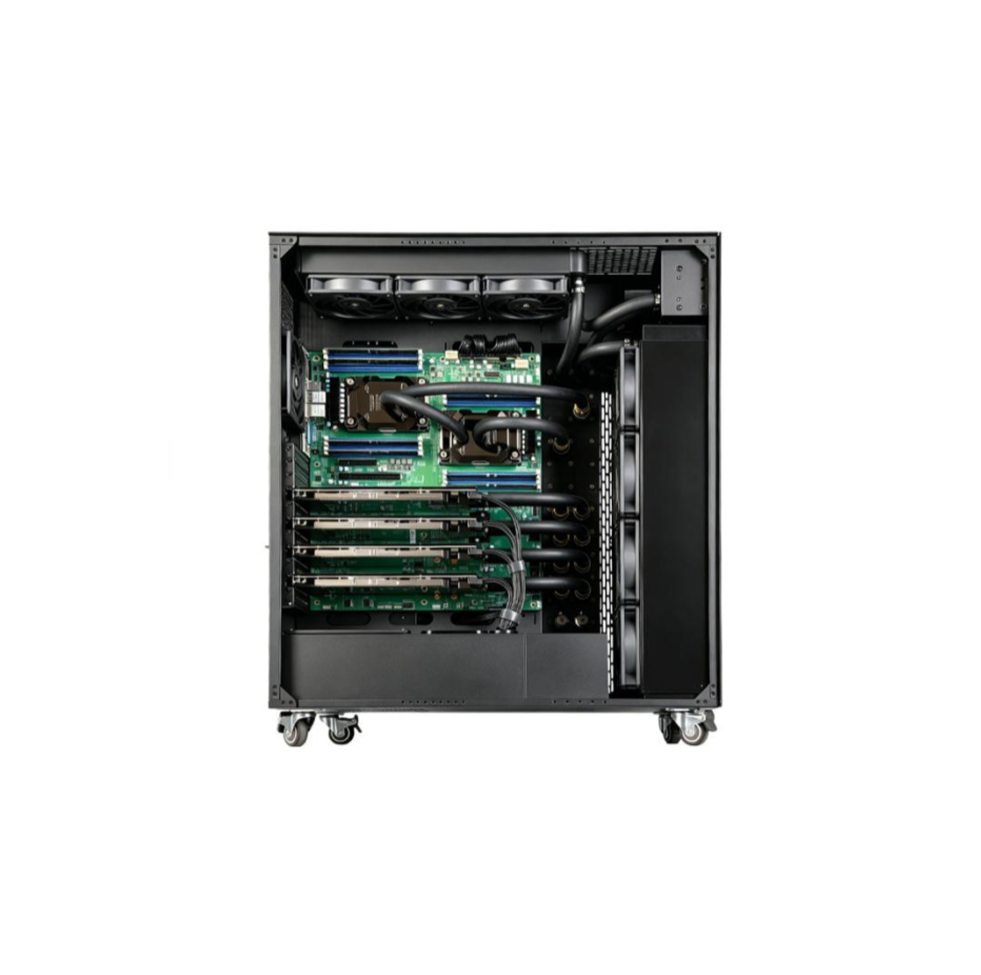

The AstralCooler Flagship Water Cooling Solution for Tower Server is best treated as a system-level visual reference, not proof that every workstation can use the same layout. Build around the equipment you actually have, follow the instructions for each component and inspect after any change. Serviceability is a cooling design criterion, not an afterthought.
Frequently Asked Questions / Q&A
Q: Should quick disconnects be installed at every connection?
A: Usually no. Use them at service boundaries where they solve a real removal or external-loop problem. Additional disconnects add cost, space and flow restriction.
Q: Can a quick disconnect replace a dedicated drain plan?
A: No. A drain still needs a reachable low point, a controlled collection method and a procedure for the completed loop. A disconnect can release a small amount of coolant when separated.
Q: What must match when adding a quick disconnect to soft tubing?
A: Confirm the thread interface, the disconnect pair, the selected fitting type, tube inner and outer diameters, retention method and the available route and bend space.
